Product Description

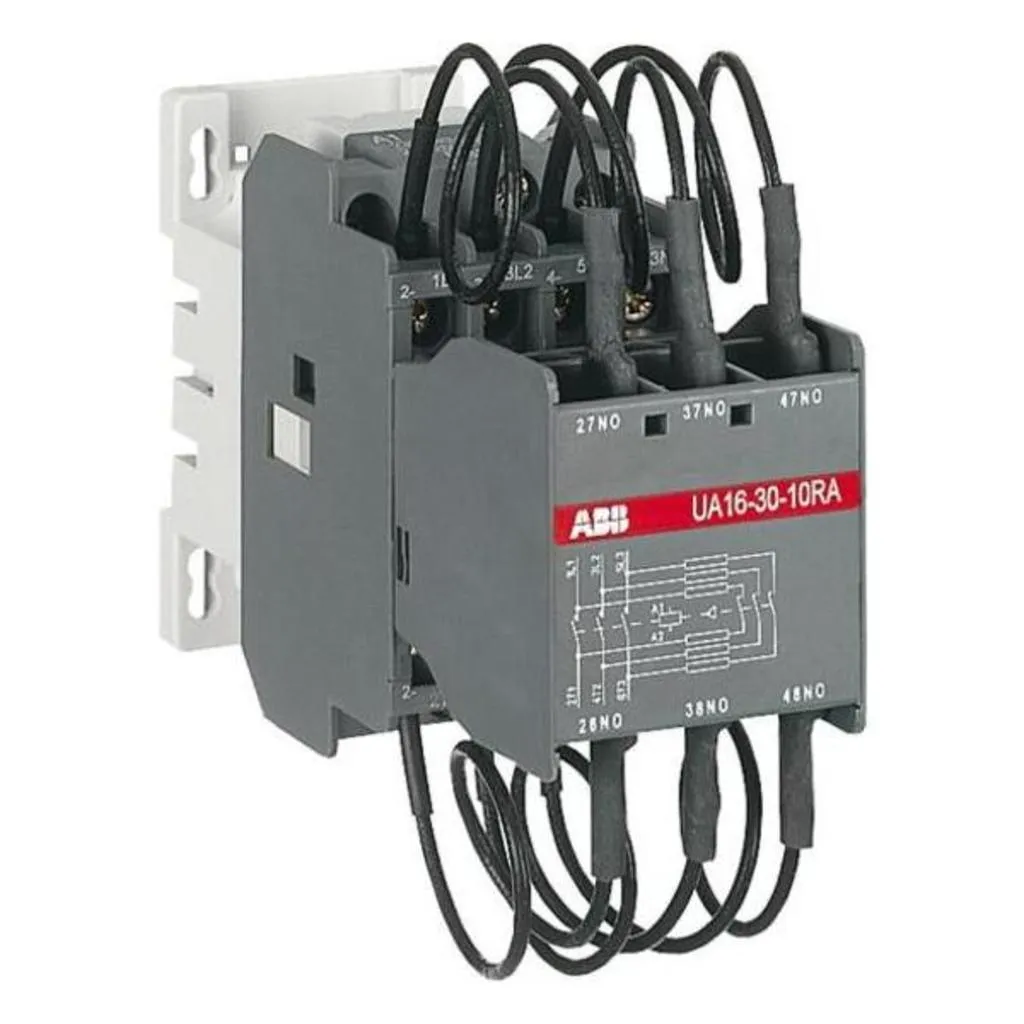

• UA16..RA 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current

• The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below)

• The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making

• Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V

• Number of Main Contacts NO : 3

• Number of Main Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Number of Auxiliary Contacts NC : 0

• Rated Operational Voltage : Main Circuit 690 V , Auxiliary Circuit 690 V

• Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

• Conventional Free-air Thermal Current (I_th) : acc. to IEC 60947-5-1, q = 40 °C 16 A

• Maximum Electrical Switching Frequency : 240 cycles per hour

• Rated Impulse Withstand Voltage (U_imp) : 8 kV

• Rated Control Circuit Voltage (U_c) : 50 Hz 24 V , 60 Hz 24 V

• Terminal Type : Screw Terminals

• Number of Main Contacts NO : 3

• Number of Main Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Number of Auxiliary Contacts NC : 0

• Product Net Width : 44 mm

• Product Net Depth / Length : 107 mm

• Product Net Height : 120 mm

• Product Net Weight : 0.46 kg
