Product Description
-

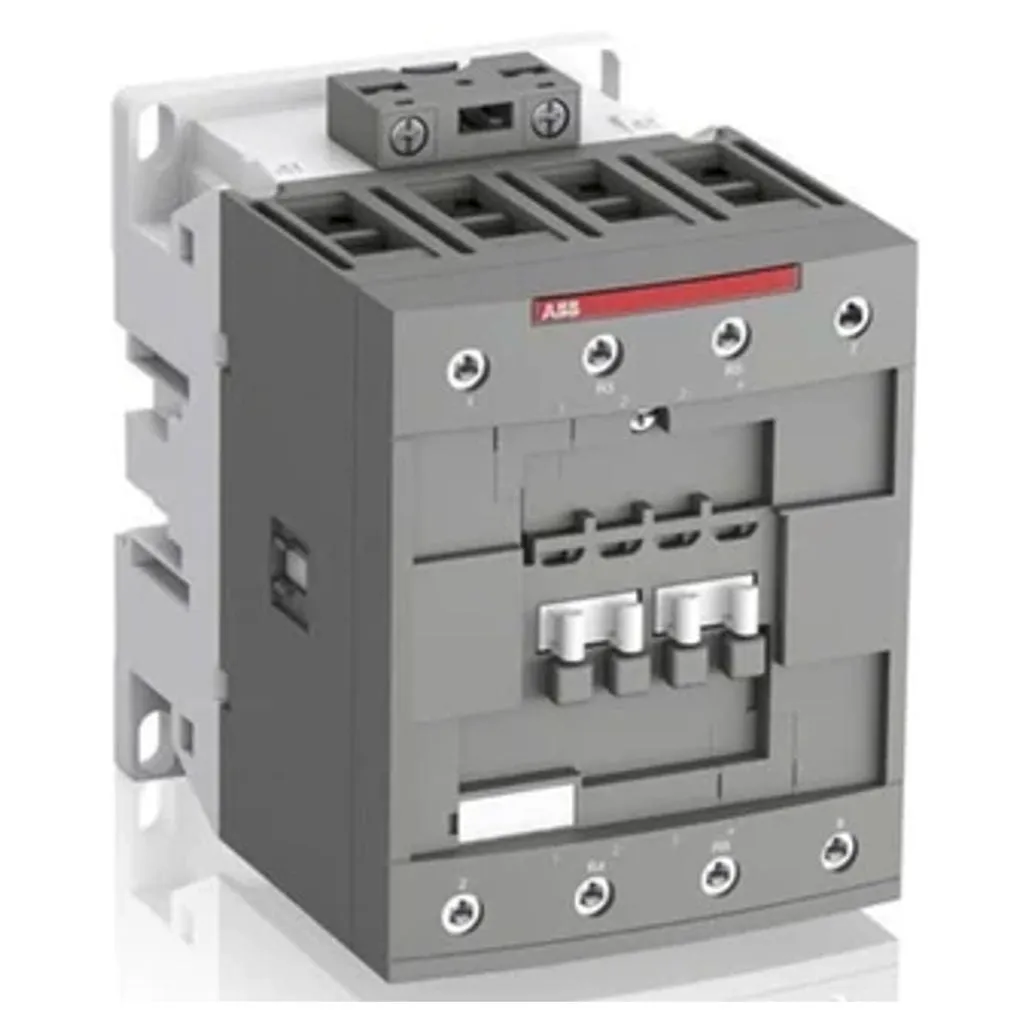

AF80 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max
-
Number of Main Contacts NO : 4
-
Number of Main Contacts NC : 0
-
Number of Auxiliary Contacts NO : 0
-
Number of Auxiliary Contacts NC : 0
-
Rated Operational Voltage : Main Circuit 690 V
-
Rated Frequency (f) : Main Circuit 50 / 60 Hz
-
Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 125 A
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Maximum Mechanical Switching Frequency : 3600 cycles per hour
-
Terminal Type : Screw Terminals
-
Product Net Width : 90 mm
-
Product Net Depth / Length : 116 mm
-
Product Net Height : 125.5 mm
-
Product Net Weight : 1.49 kg
Product Specification
|
Rated Voltage |
Product ID |
Description |
|
24-60V |
1SBL397201R1100 |
AF80-40-00-11 24-60V50/60HZ 20-60VDC Contactor |
|
48-130V |
1SBL397201R1200 |
AF80-40-00-12 48-130V50/60HZ-DC Contactor |
|
100-250V |
1SBL397201R1300 |
AF80-40-00-13 100-250V50/60HZ-DC Contactor |
|
250-500V |
1SBL397201R1400 |
AF80-40-00-14 250-500V50/60HZ-DC Contactor |
