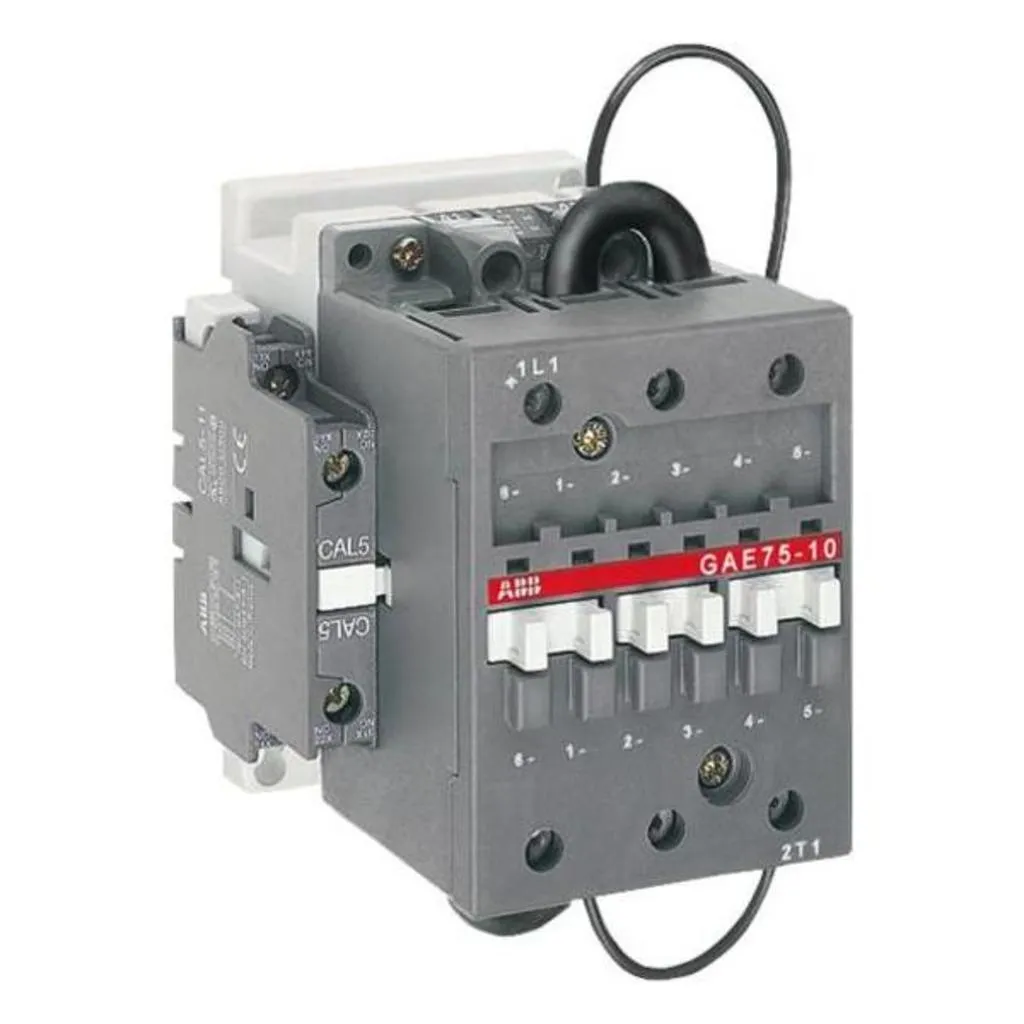

Product Description

• GAE75 contactors are designed for DC circuit switching. Arc suppression is more difficult in DC than in AC

• To choose a contactor, it is necessary to know the current and voltage to be broken as well as the L/R time constant of the power circuit to be controlled

• GAE75 contactors are of the block type design

• Main poles: the contactors are fitted with arc chutes with permanent magnets specially designed for DC breaking

• Number of Main Contacts NO : 3

• Number of Main Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Number of Auxiliary Contacts NC : 1

• Rated Operational Voltage : Main Circuit 600 V

• Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

• Rated Impulse Withstand Voltage (U_imp) : 8 kV

• Mechanical Durability : 10 million

• Maximum Mechanical Switching Frequency : 3600 cycles per hour

• Terminal Type : Screw Terminals

• Product Net Width : 94 mm

• Product Net Depth / Length : 108 mm

• Product Net Height : 132 mm

• Product Net Weight : 1.3 kg
