Need more audio or CV inputs on specific modules in your Eurorack system?

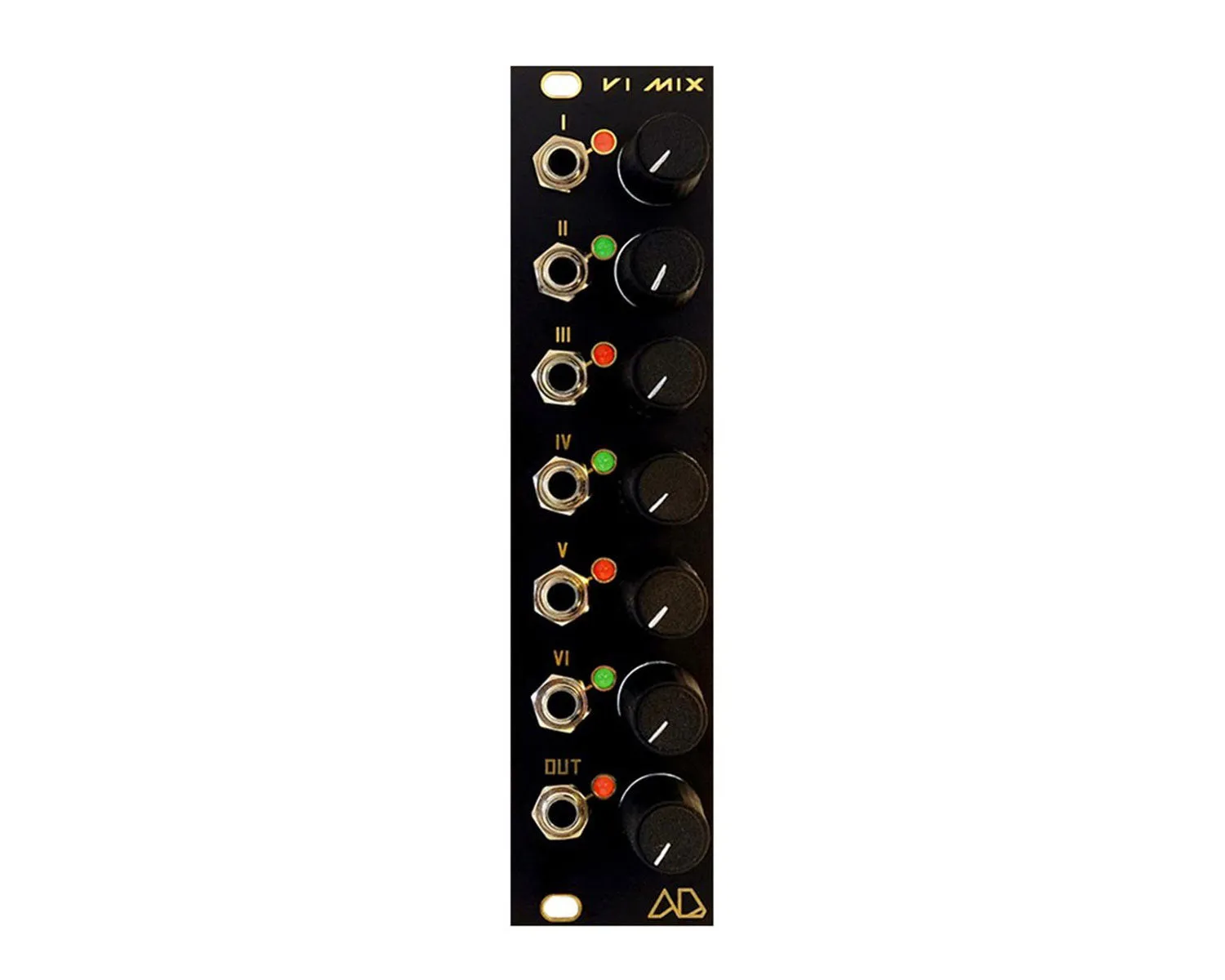

The Abyss Devices VI Mix is a six-to-one mixer with dedicated level controls for each input and the master output.
It is capable of handling audio and CV signals and each channel has its own bipolar red/green LED for level monitoring. The combination of per-channel level and master level controls means that you can easily fine-tune a balance between audio or modulation signals and then treat the master as an overall level/depth control—enabling macro-like control of audio signal grouping, modulation depth control, and more.
You can also chain multiple units to increase your total number of input channels.
Abyss Devices's series of mixing modules are all completely compatible with one another's daisy-chaining schemes so you can expand by adding any combination of VI Mix, aMix, or uMix in order to develop your own ideal mixing workflow.
This no-nonsense mixer provides endless utility as an audio, CV, and gate signal combiner.
With its easy expandability, it keeps your options open for future expansion.

Product Specs

• Item Number: 26932
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Canada
• MPN: AB-VIMIX
• Modular Grid: Eurorack
• Dimensions: 6 HP 20 mm deep
• Power: 17 mA 12V 20 mA -12V 0 mA 5V
