Name: Bosch Series 6 DWB98JQ50B Wall-mounted cooker hood 90 cm PRA3A6B70K Series 8 Domino gas hob 30 cm Ceramic, Black PRB3A6B70K Series 8 Domino gas hob 30 cm Ceramic, Black
SKU: 1486523

Product Details ＋

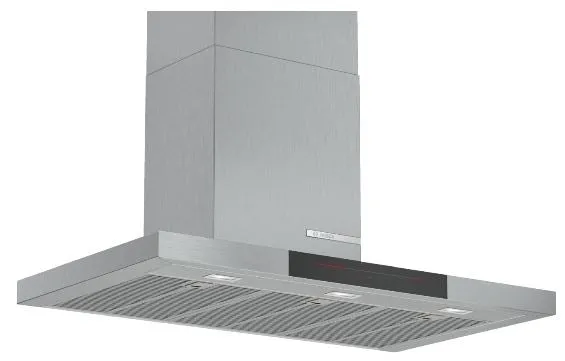

1. DWB98JQ50B

Performance

Extraction rate according to EN 61591 ø 15 cm:
max. Normal use430m³/h
Intensive844 m³/h

Design

90 cm Wall Hood Hood, Silver metallic

Box design

Comfort:

air quality sensor 1.1
Automatic intensive revert after 6 min.
Automatic run on for 10 min.
Easy to clean yes
softLight
3 x 1.5W LED
Saturation indicator for metal and charcoal filter
Removable metal grease filter, dishwasher safe
3 removable metal grease filters
Energy Efficiency Class: A

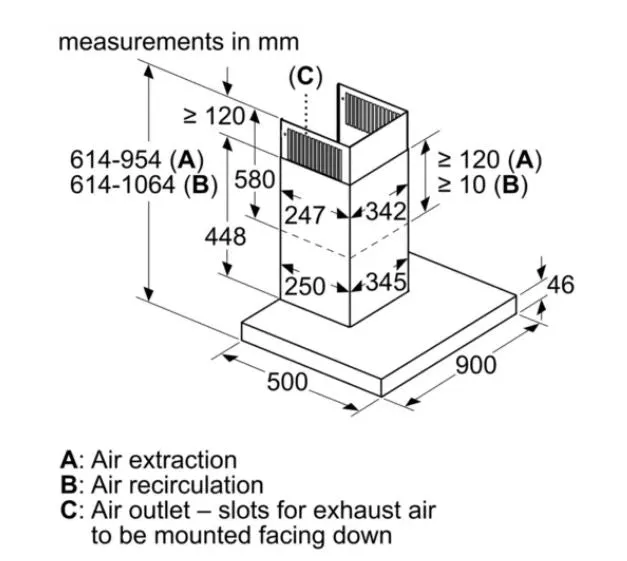

Technical information:

Dimensions exhaust air (HxWxD mm): 614-954 x 898 x 500
Dimensions recirculating (HxWxD mm): 614-1064 x 898 x 500
Dimensions recirculating with CleanAir module (HxWxD mm):
689 x 898 x 500- mounting with outer chimney
795-1139 x 898 x 500 - mounting with telescopic chimney
Suitable for ducted or recirculating operation
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Electrical cable lenght 1.3 m
Voltage: 220 - 240 V

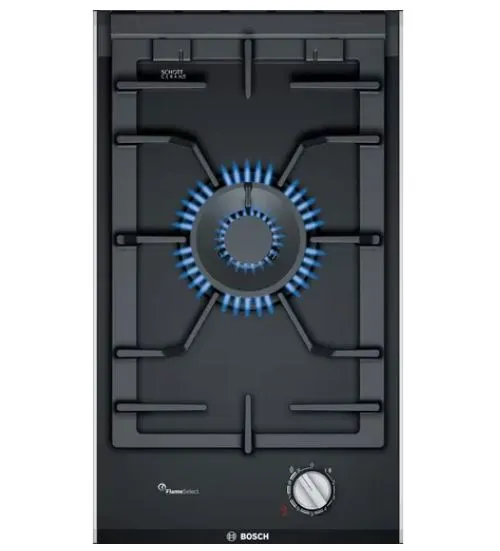

2. PRA3A6B70K

Heating Functions

1 PC gas burner
Domino - Can be combined with other Bosch hobs
Front center wok burner maximum power: up to 4.6 KW (depending on gas type)
Design
Black ceramic base
Sword control knobs

Comfort

Step valve 9 steps
Cast iron pan supports
Knob ignition

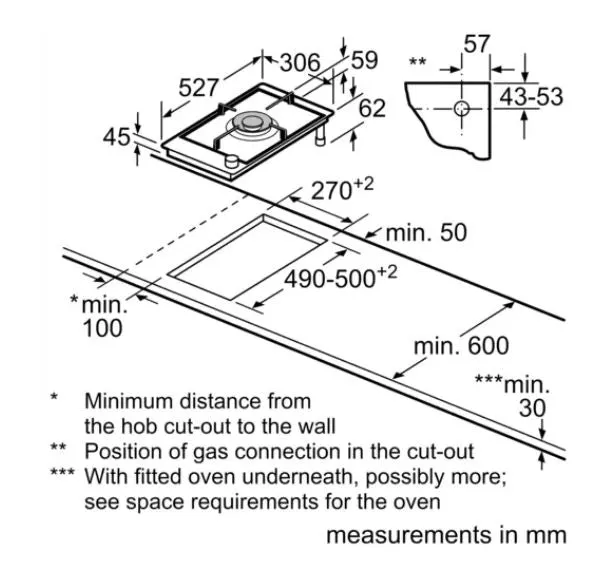

Technical Information

Dimensions of the product (HxWxD mm) : 45 x 306 x 527
Required niche size for installation (HxWxD mm) : 45 x 270-270 x 490-500
Electrical connection rating: 1.1 W
Gas connection rating: 4600 W
Length of mains cable: 150 cm
Preset nozzle: town gas (10mbar)
Plug type: GB plug

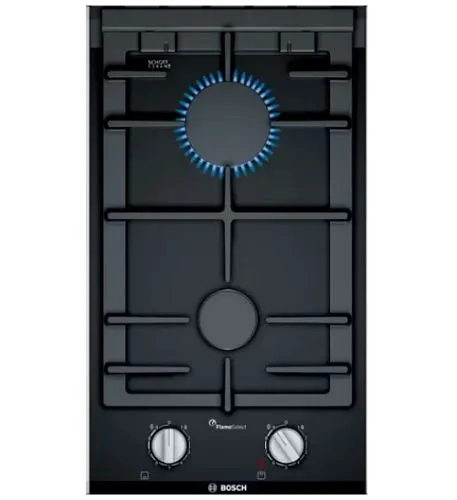

3. PRB3A6B70K

Heating Functions

2 PC gas burner
Domino - Can be combined with other Bosch hobs
Front standard burner maximum power: 1.9 KW (depending on gas type)
Rear centre high-speed burner maximum power: up to 2.8 KW (depending on gas type)

Design
