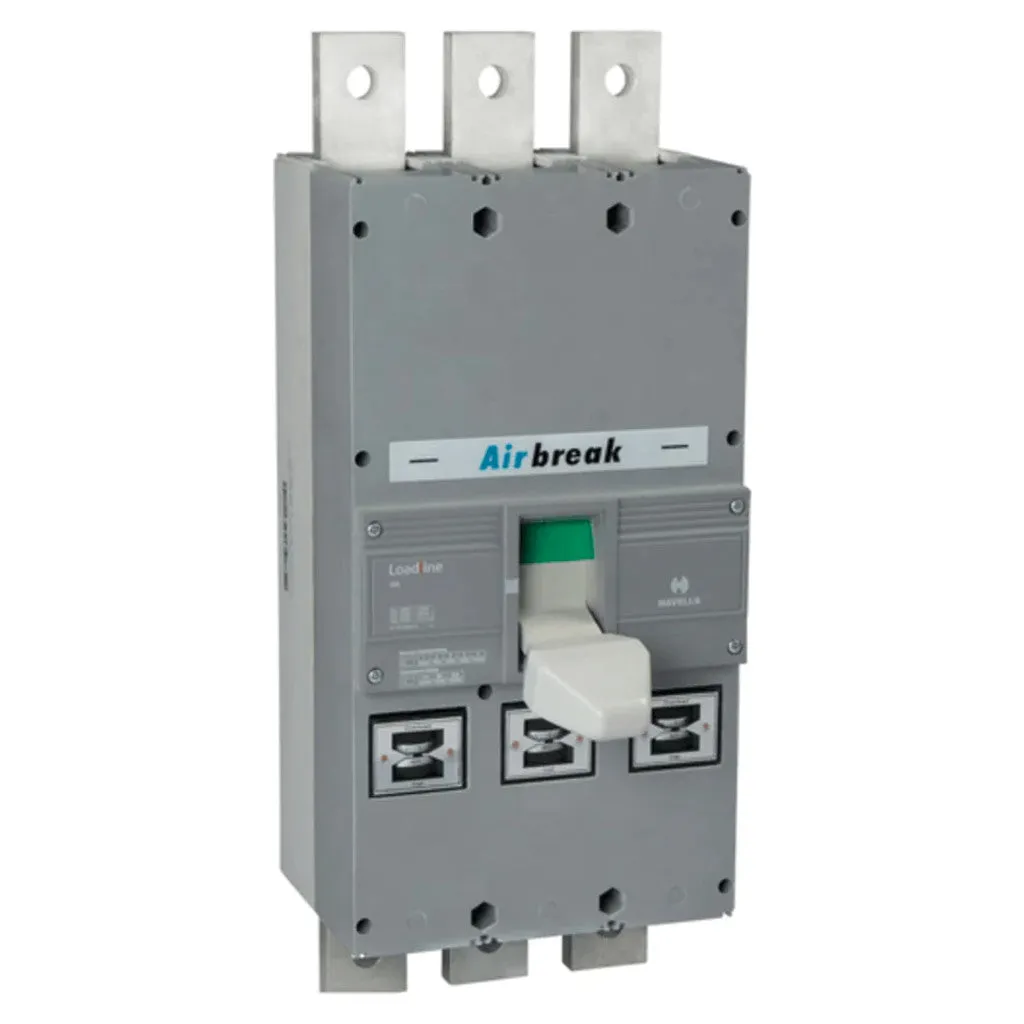

Product Description

Overload Setting is Polewise Adjustable (70-100)% & Short Circuit Settings is also Polewise Adjustable (4-10)times of Rated Current.

Compact Size & Double Insulation

• Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

• Can be used as an Isolator

Provision of Push to tip button

• It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

• Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

• Depicts the ON/OFF status of the breaker

Suitable for DC application

• Offers choice of system usage

Wide range of accessories available

• Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Separate Main & Arching contacts

• Arching Contacts makes first and breaks last thereby lending longer life to the main contacts.

Product Specifications

• Ref. Standard: IS/ IEC 60947-2

• Rated operational voltage: 500V AC

• Rated Insulation Voltage: 750V AC

• Type of Release: Thermomagnetic

• Utilisation Category: A

• Rated frequency: 50/60Hz

• Ambient temp: 400C (500C on request)

• Operating altitude: 2000 metres

• Humidity: 0 - 90%

• Rated impulse voltage: 8 kV

• Rating Range: 1000A - 1600A

• Type of Release: Adjustable Type

• No. of Poles: Three

• Breaking Capacity: Icu = 50kA, Ics = 75% of Icu

Note: # All MCCB’s are with extended terminals.
