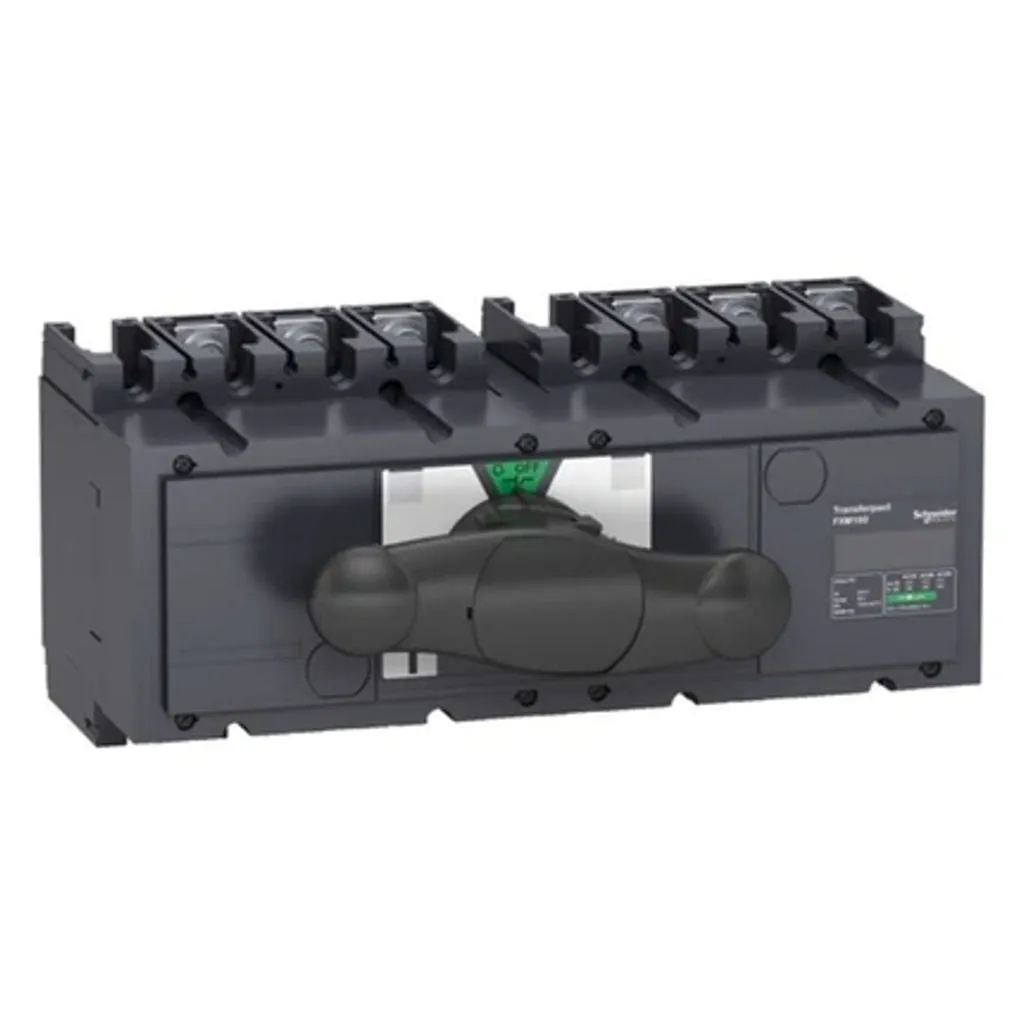

Product Description
-
For Low Voltage Circuit Control And Isolation - Incomers For Distribution Boards
-
Conforms to IEC 60947-3/IS 13947 - 3
-
Rated Operational Voltages 500V/690V
-
Range 40A to 2500A
-
Rated Operational Current @ AC 23A
-
No deration upto 60° C
-
Positive contact indication
-
Common Accessories With Compact NSX/Single Auxillary Contact
-
Making Capacity Enhanced With Compact NSX Upstream
Product Specification
|
Brand |
Schneider |
|
Model |
Compact INS & INV |
|
Product Code | Rated Current |
31140 | 100 A AC-23A 31144 | 160 A AC-23A 31142 | 200 A AC-23A 31146 | 250 A AC-23A 31148 | 320 A AC-23A 31150 | 400 A AC-23A 31154 | 630 A AC-23A |
|
Product Type |
Interpact Changeover Systems |
|
Color |
Black |
|
No Of Poles |
3 Pole |
|
Network Type |
AC DC |
|
Network Frequency |
50/60 Hz |
|
Mounting Mode |
Fixed |
|
Upside Connection |
Front |
|
Downside Connection |
Front |
|
Suitability For Isolation |
Yes |
|
Contact Position Indicator |
Yes |
|
Transfer Switch Class |
PC |
|
Number Of Contact Position |
3 |
|
Control Type |
Direct front rotary handle |
|
Mounting Support
|
Plate |
|
Dimension |
136 mm x 295 mm x 131 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
