Product Description
-

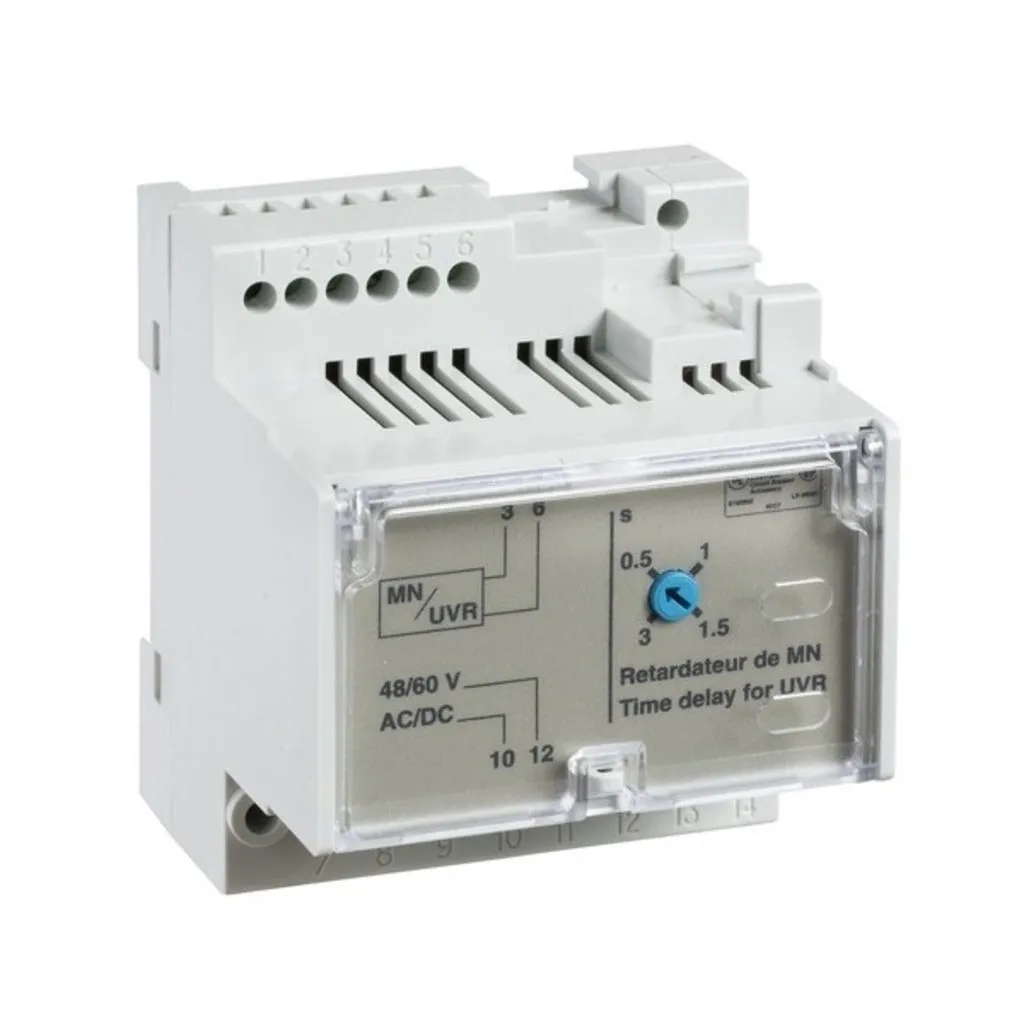

This time delay unit is an auxiliary that can be combined with an undervoltage release (MN)
-
It must be associated with a 48VDC MN undervoltage release
-
It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200ms to 3s
-
Its power supply is 48-60VDC or 48-60VAC 50/60Hz
-
This time delay unit has 4 adjustable steps (0.5s - 1s - 1.5s - 3s). It is an external accessory and can be mounted in the switchboard
Product Specification
|
Brand |
Schneider |
|
Model |
EasyPact MVS |
|
Product Code | Voltage |
33680 | 48/60 V AC/DC 33681 | 100/130 V AC/DC 33682 | 200/250 V AC/DC 33683 | 380/480 V AC/DC |
|
Product Type |
Rr (Adjustable) MN Delay Unit |
|
Color |
White |
|
device application |
Control |
|
Offer Type |
C4 C5 |
|
Voltage Release Type |
Instantaneous |
|
Impulse Duration |
200 ms |
|
Time Delay Range |
0.5-3 s |
|
Supply Holding Power |
4.5 VA |
|
Supply Inrush Power |
200 VA |
|
Response Time |
0.5 s 0.9 s 1.5 s 3 s |
|
Warranty |
As Per Manufacturer Terms and Condition |
